Small Size,
Big Capabilities
Innovation and reliability tailored for enterprise excellence
Powered by Intel® Twin Lake N150

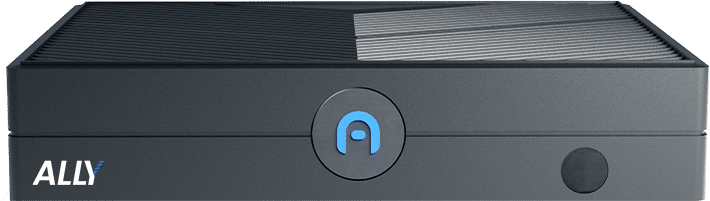

Ally N150 Mini PC: Built for Business. Ready for Scale
At the core of every business success are performance and flexibility, and the Ally N150 Mini PC delivers both. Its fanless design keeps it cool and quiet, reducing maintenance needs and maximizing uptime. Built for demanding applications like digital signage, kiosks, and automation, this compact powerhouse brings enterprise-grade performance in a compact, space-saving design.
Unlike mass-market devices repurposed for business, the Ally N150 is purpose-built for enterprise deployments. It’s designed to run cool and quiet, reducing maintenance needs and maximizing uptime. That’s what makes it a smart long-term investment. And, it’s available through Now Micro.

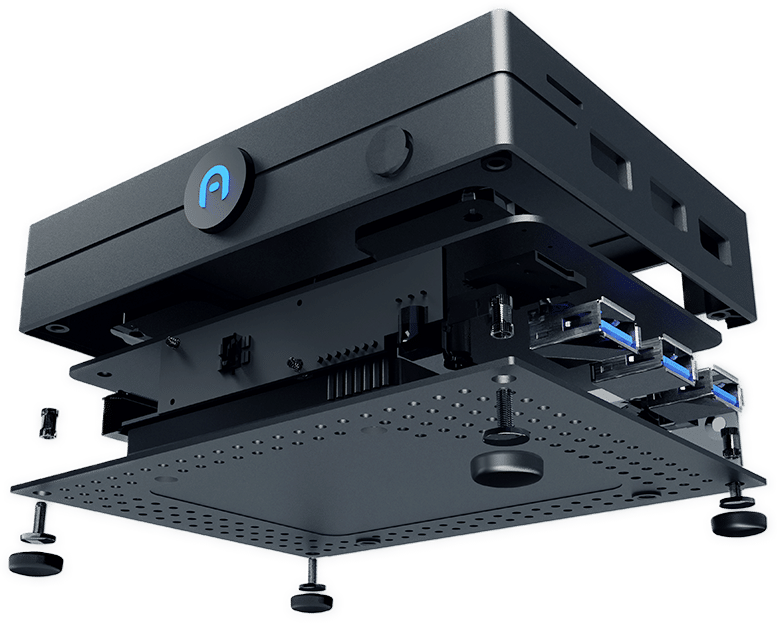

Built for Business, Engineered to Last
Powered by the Intel® Twin Lake N150 processor, the Ally N150 balances energy efficiency with fast, responsive computing. Whether you’re streaming content across multiple displays, running a self-service terminal, or deploying at the edge, this mini PC is up to the task. Built with industrial grade components, the Ally N150 is fanless, built for 24/7 operation, and ensures maximum reliability, making it the ideal choice for mission-critical business environments.
Key Features:
- Intel® N150 (Twin Lake): Up to 3.6GHz with 4 cores and 6MB Smart Cache
- Fanless, Compact Design: Silent operation and reduced maintenance
- Dual Display Support: Ideal for signage, dashboards, and POS
- Versatile Connectivity: USB, HDMI, Ethernet, and more
- Expandable Storage: Supports SSDs and microSD cards
- Energy-Efficient: Low power draw, perfect for nonstop deployments
- Commercial-Grade Durability: Built to handle high-uptime environments
Real-World Applications
The Ally N100 is optimized for B2B environments where reliability is non-negotiable. If your business needs continuous performance and power in a small format, this is the right mini PC. Industries that benefit most:

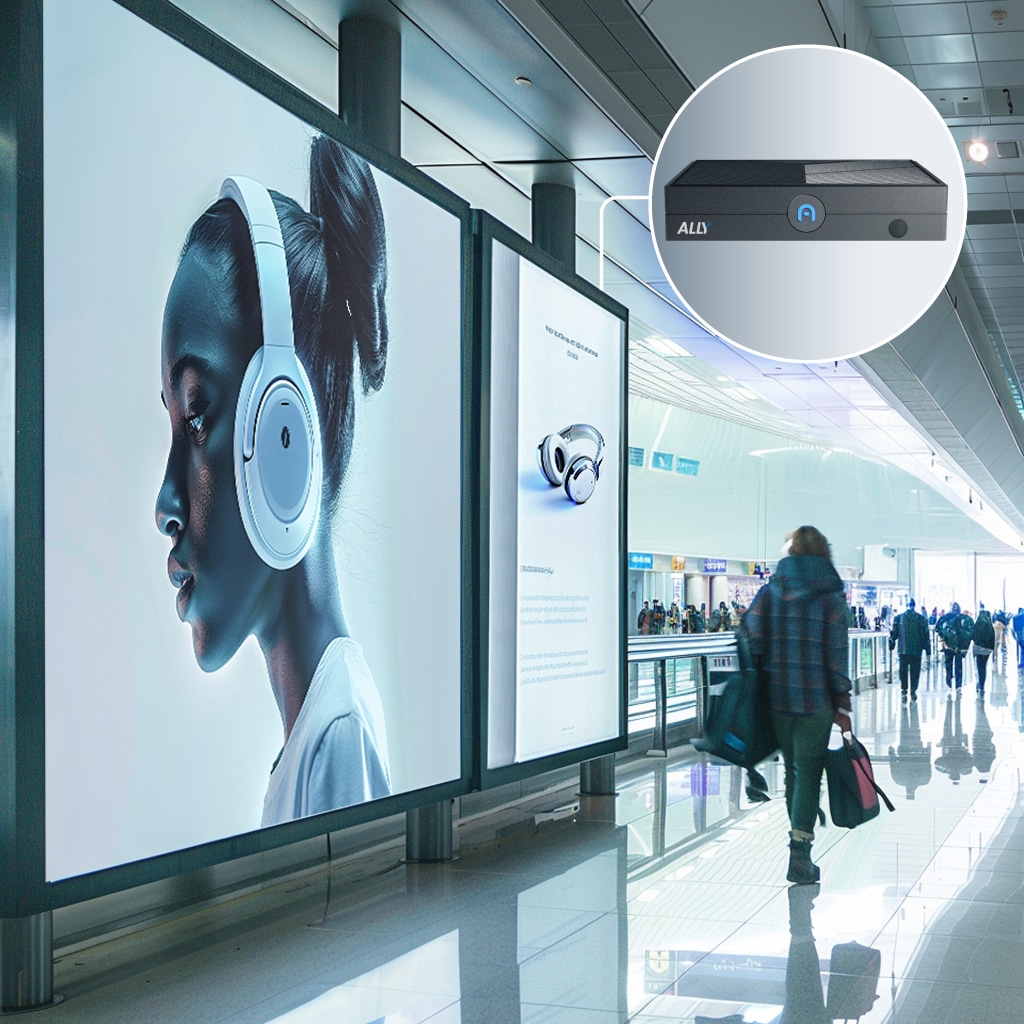

- Digital Signage: Retail, airports, QSRs, hospitality, and lobbies
- Kiosks & Terminals: Banking, healthcare, ticketing, transportation
- Edge & Automation: Smart devices, data collection, remote systems
Order Access ARM now!
Real-World Applications
The Ally N150 is optimized for B2B environments where reliability is non-negotiable. If your business needs continuous performance and power in a small format, this is the right mini PC. Industries that benefit most:
- Digital Signage: Retail, airports, QSRs, hospitality, and lobbies
- Kiosks & Terminals: Banking, healthcare, ticketing, transportation
- Edge & Automation: Smart devices, data collection, remote systems
Where to Buy
Azulle and Now Micro have teamed up to make Ally N150 easier to source, deploy, and scale. You can purchase the Ally N150 today through Now Micro, with access to tailored support and enterprise service options.

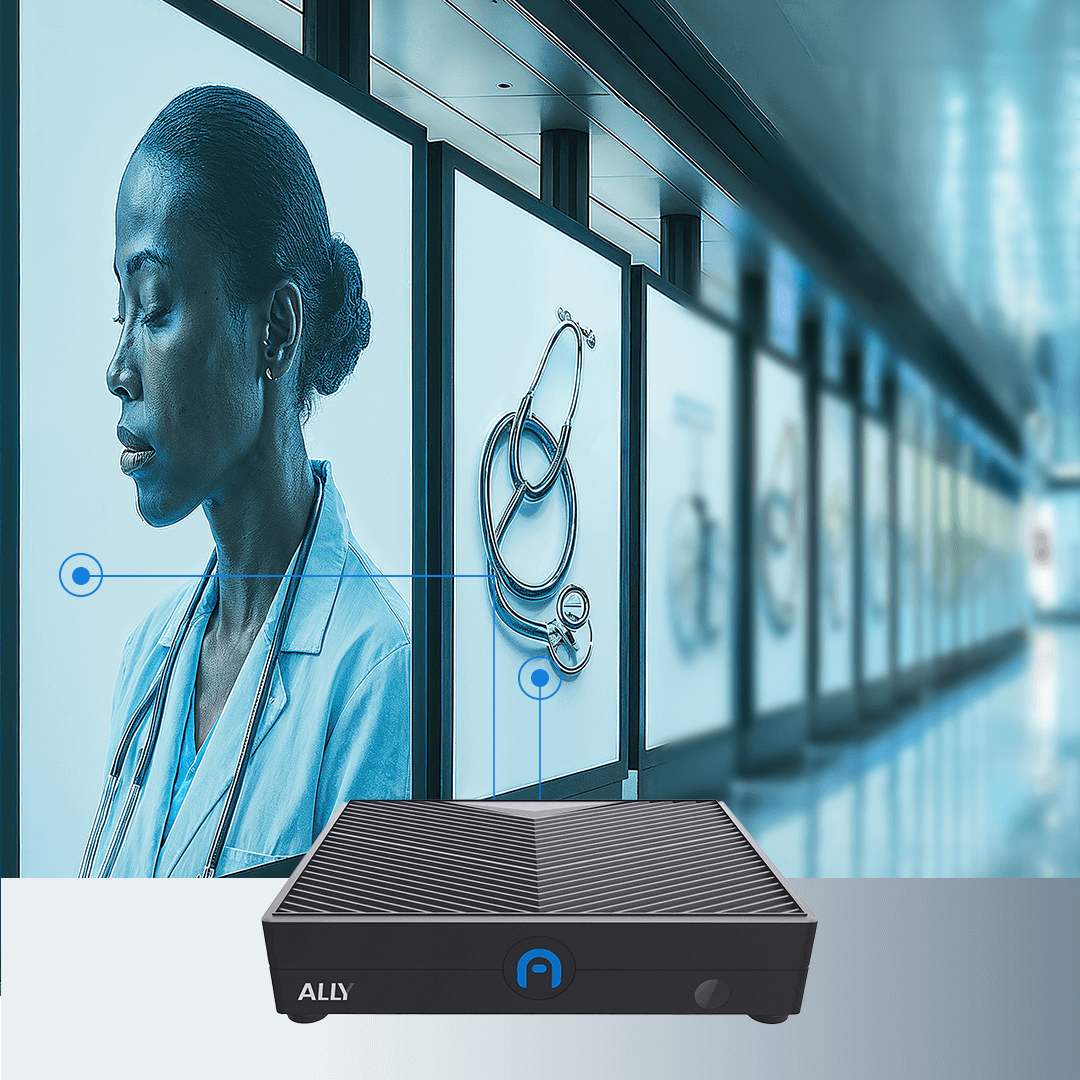

non-stop performance in digital signage, kiosks, and automation environments. Whether you’re managing multiple displays in a retail store or powering digital signage throughout an airport, the Ally N150 delivers smooth playback, zero noise, and zero interruptions, all in an energy-efficient form factor.

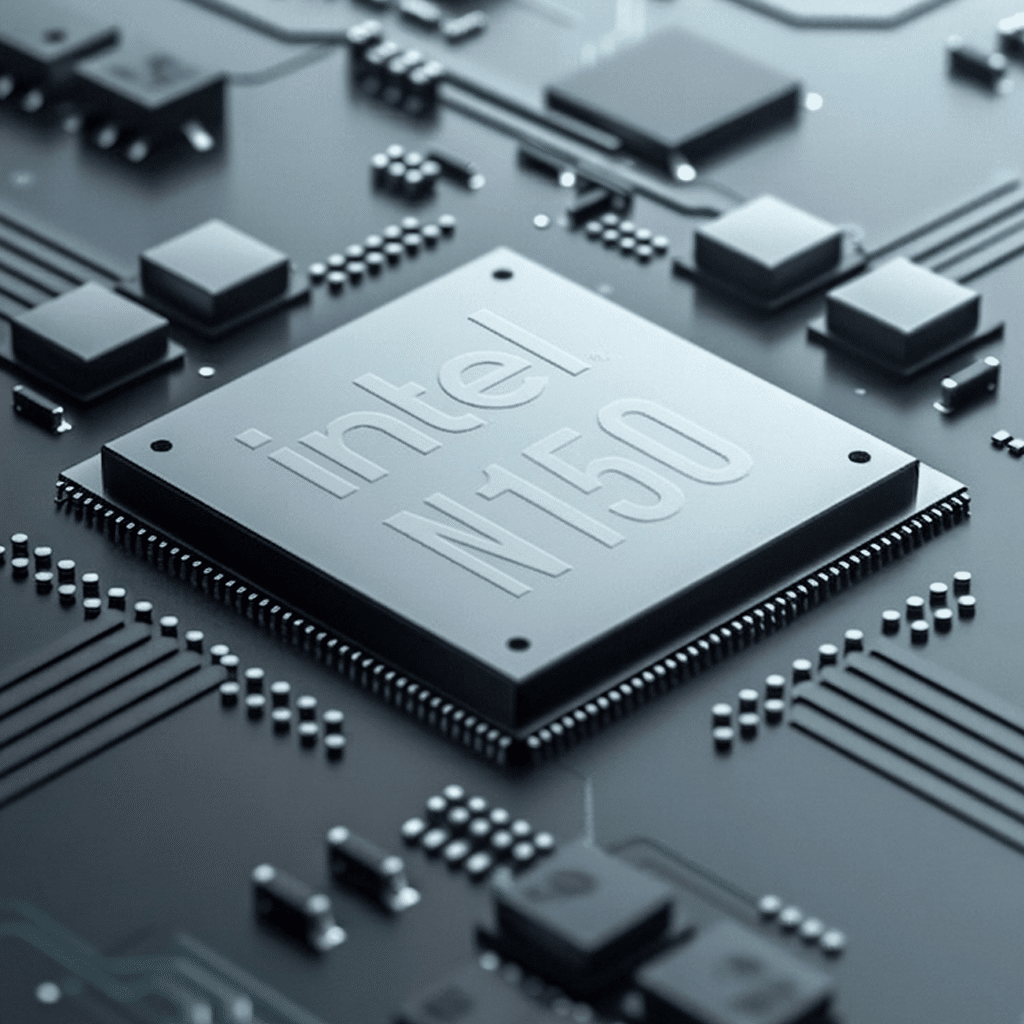

Powered by Intel® N150 (Twin Lake)
- Fanless, High-Efficiency Processing: Leverage Intel’s 3.6GHz Twin Lake N150 processor with 4 cores and 6MB Smart Cache to handle modern content and applications reliably and silently.
- Lag-Free Media Playback: Optimized for real-time content rendering, interactive interfaces, and simultaneous application use.
- Low Power, High Output: Delivers powerful computing with minimal energy consumption,ideal for energy-conscious deployments.
Dual Display Support
- Built for Demanding Environments: Designed to perform continuously in high-traffic areas like retail stores, airports, and QSRs.
- Dual Display Support: Power two screens simultaneously for expanded content reach or interactive split-screen experiences.
- Consistent Media Playback: Keeps your content running smoothly, no interruptions, no overheating, no noise.

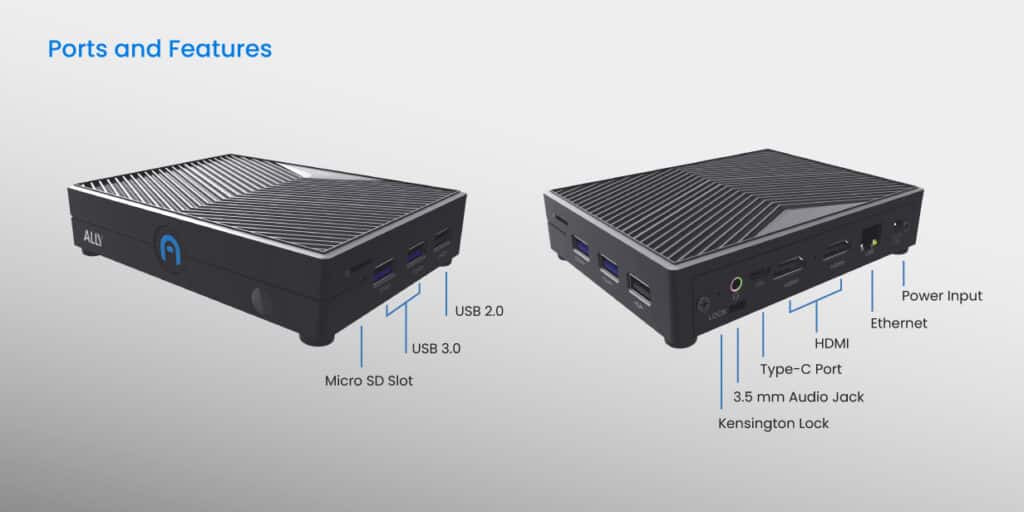

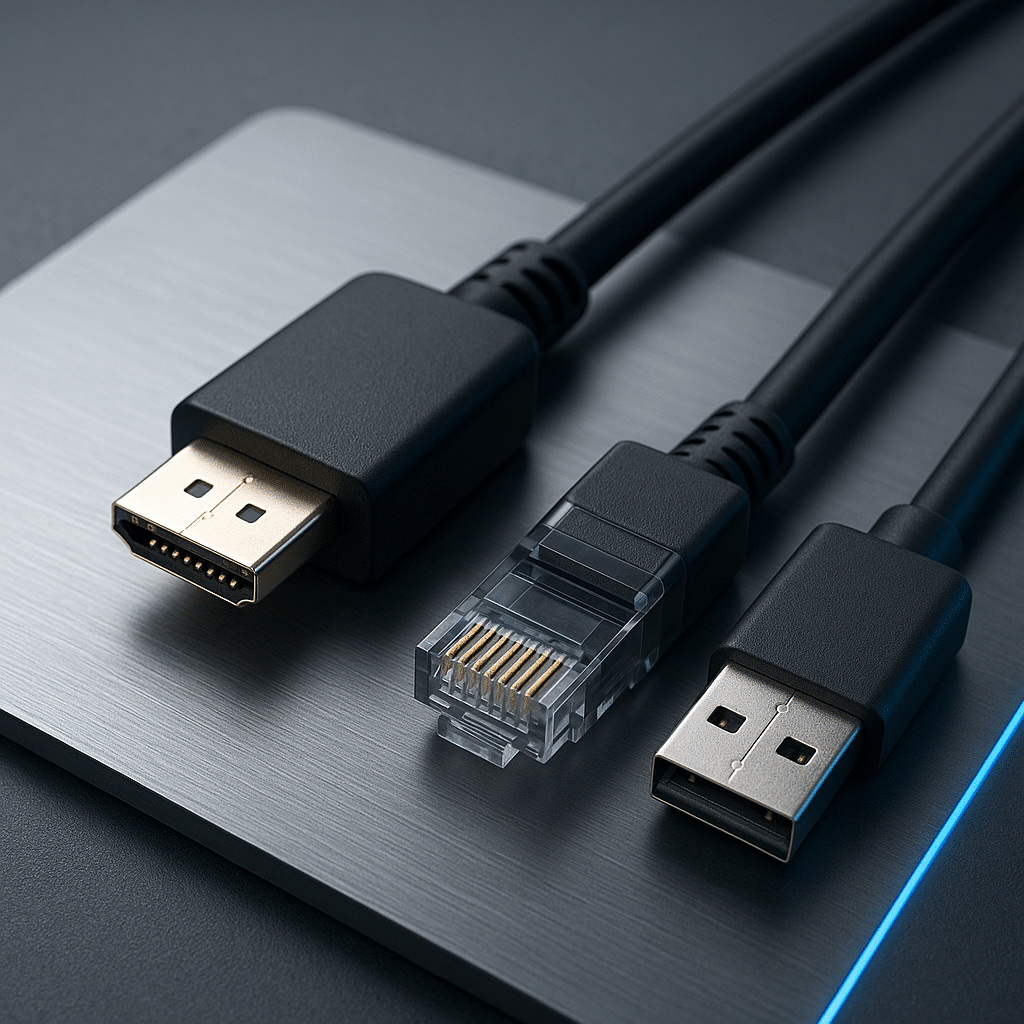

Versatile Connectivity
- Dual display output for expanded media coverage
- Versatile ports: USB, HDMI, DisplayPort, Ethernet
- Expandable storage: SSD + microSD support

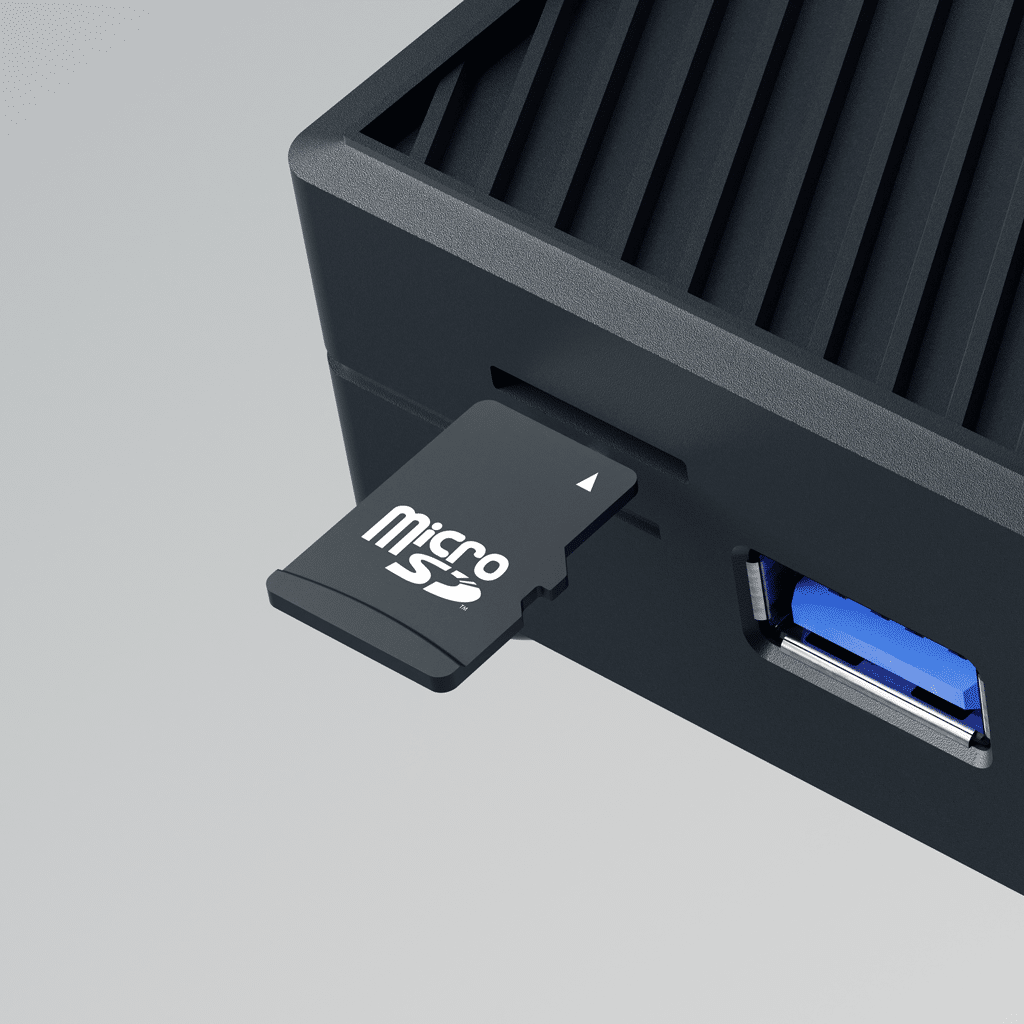

Storage Options
Support for SSD and microSD for flexible file storage and system expansion
Order Ally Now!

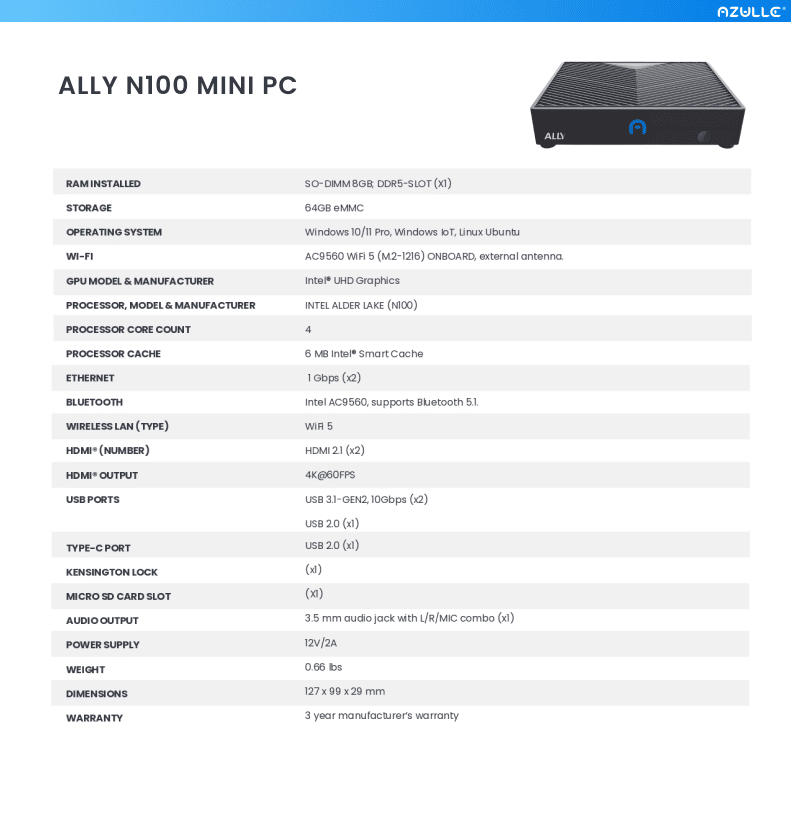

| RAM INSTALLED | SO-DIMM 8GB; DDR5-SLOT (x1) |
| STORAGE | 64GB eMMC |
| OPERATING SYSTEM | Windows 10/11 Pro, Windows IoT, Linux Ubuntu |
| WI-FI | AC9560 WiFi 5 (M.2-1216) ONBOARD, external antenna |
| GPU MODEL & MANUFACTURER | Intel® UHD Graphics |
| PROCESSOR, MODEL & MANUFACTURER | Intel Alder Lake (N100) |
| PROCESSOR CORE COUNT | 4 |
| PROCESSOR CACHE | 6 MB Intel® Smart Cache |
| ETHERNET | 1 Gbps (x2) |
| BLUETOOTH | Intel AC9560, supports Bluetooth 5.1 |
| WIRELESS LAN (TYPE) | WiFi 5 |
| HDMI® (NUMBER) | HDMI 2.1 (x2) |
| HDMI® OUTPUT | 4K @60FPS |
| USB PORTS | USB 3.1-GEN2, 10Gbps (x2); USB 2.0 (x1) |
| TYPE-C PORT | USB 2.0 (x1) |
| KENSINGTON LOCK | (x1) |
| MICRO SD CARD SLOT | (x1) |
| AUDIO OUTPUT | 3.5 mm audio jack with L/R/MIC combo (x1) |
| POWER SUPPLY | 12V/2A |
| WEIGHT | 0.66 lbs |
| DIMENSIONS | 127 x 99 x 29 mm |
| WARRANTY | 3 year manufacturer's warranty |

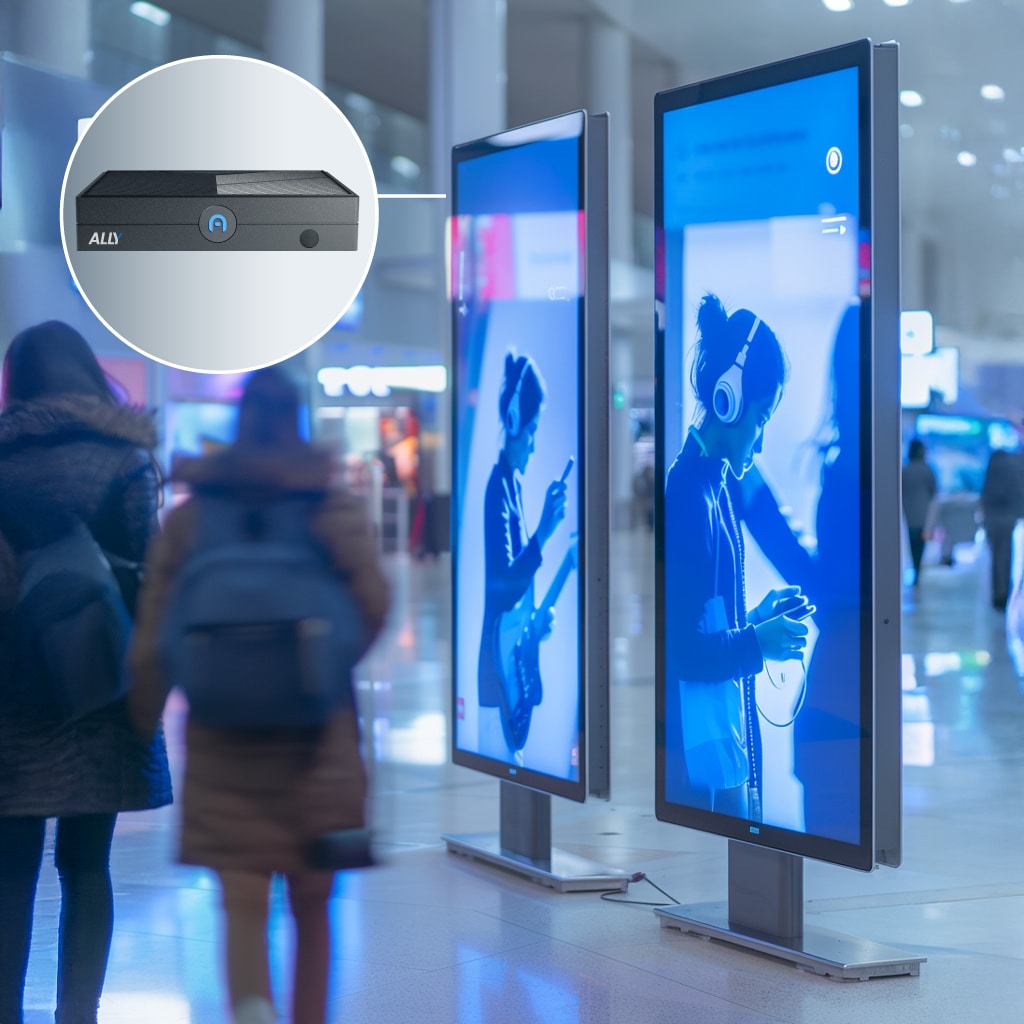

Digital Signage & Content Display
Retail, airports, hospitality, corporate lobbies, advertising networks
Retail & Quick-Service Restaurants (QSRs)
Enable efficient self-service ordering, POS integration, and price verification with compact, reliable hardware that blends seamlessly into customer-facing environments.

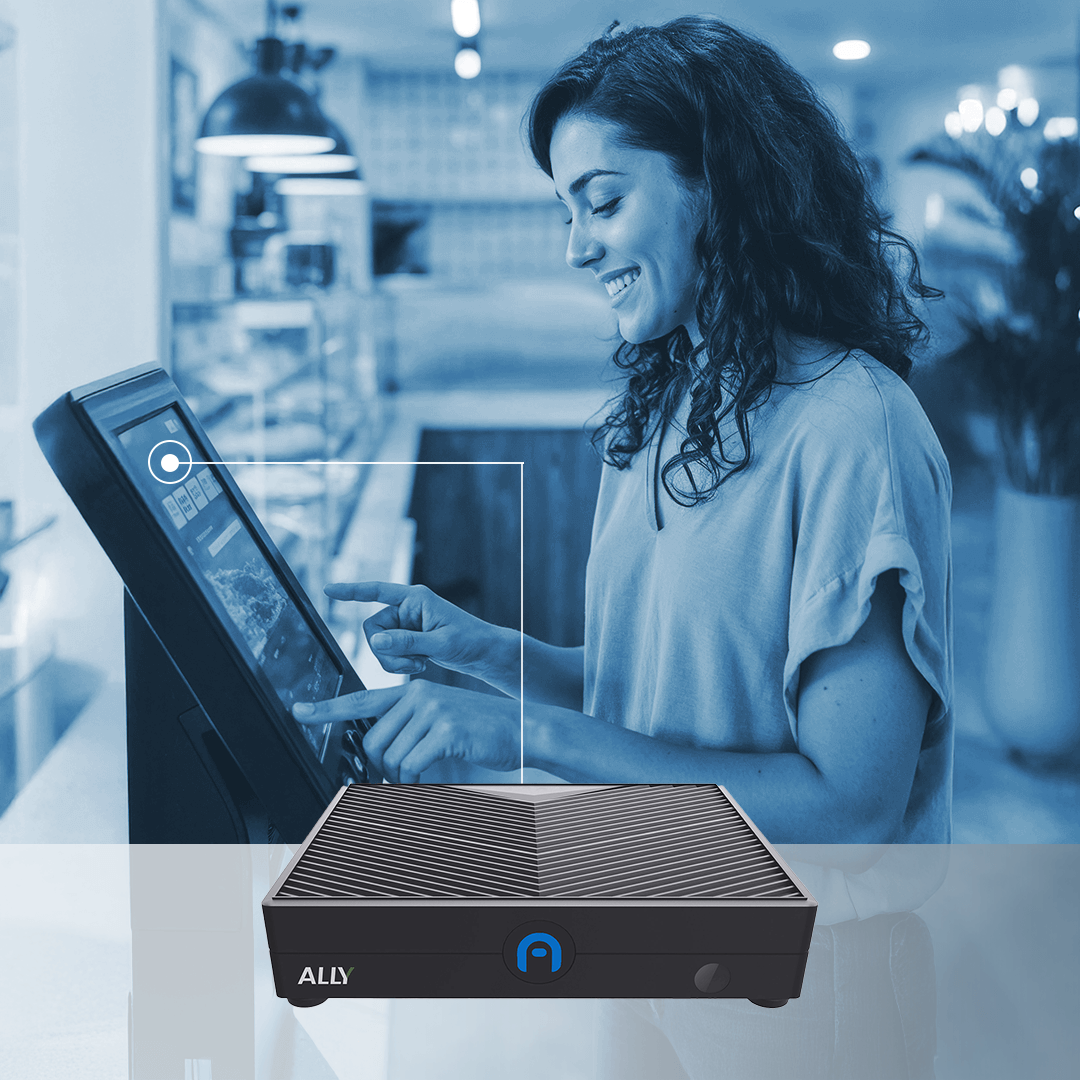

Interactive Kiosks & Self-Service Terminals
Drive smooth, responsive performance in education, transit hubs, and healthcare check-in systems, supporting touch interfaces and real-time interaction.
IoT & Automation Solutions
Act as a powerful gateway for device control, data acquisition, and real-time communication in smart buildings, industrial automation, and connected retail environments.
FAQ
What is the Ally N150 Mini PC designed for?
The Ally N150 Mini PC is engineered for high-uptime, commercial-grade environments like digital signage, kiosks, automation systems, and self-service terminals. It’s optimized for enterprises that need compact, reliable computing solutions.
What processor does the Ally N150 use?
It features the Intel® Twin Lake N150 processor, a 4-core chip with 6MB Intel Smart Cache, delivering efficient, responsive performance suitable for content playback and multitasking.
Can the Ally N150 support dual displays?
Yes. It supports dual display outputs, allowing for extended screens or mirrored displays, ideal for digital signage and interactive kiosks.
What connectivity options are available?
The unit includes multiple USB ports, HDMI, and Ethernet connections to support diverse system architectures and deployment needs.
Does the Ally N150 support storage expansion?
Yes. It includes support for SSD and microSD card expansion, giving you flexible options for storage and application deployment.
